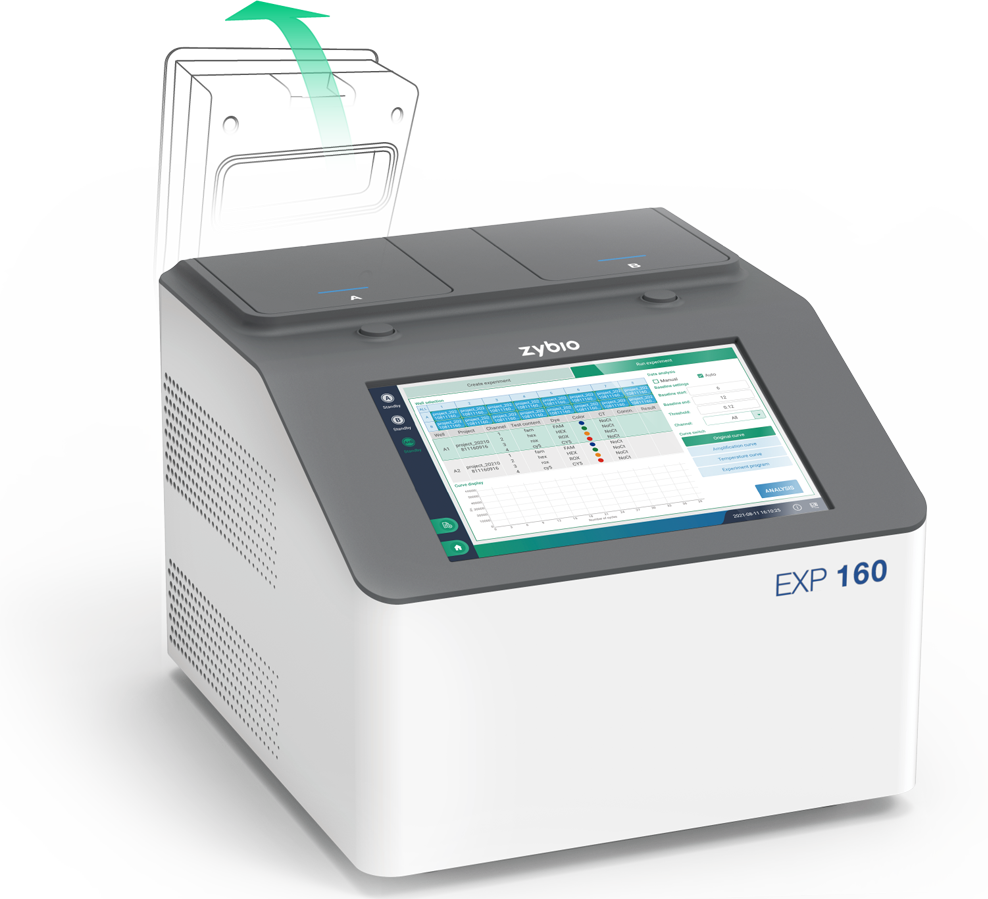

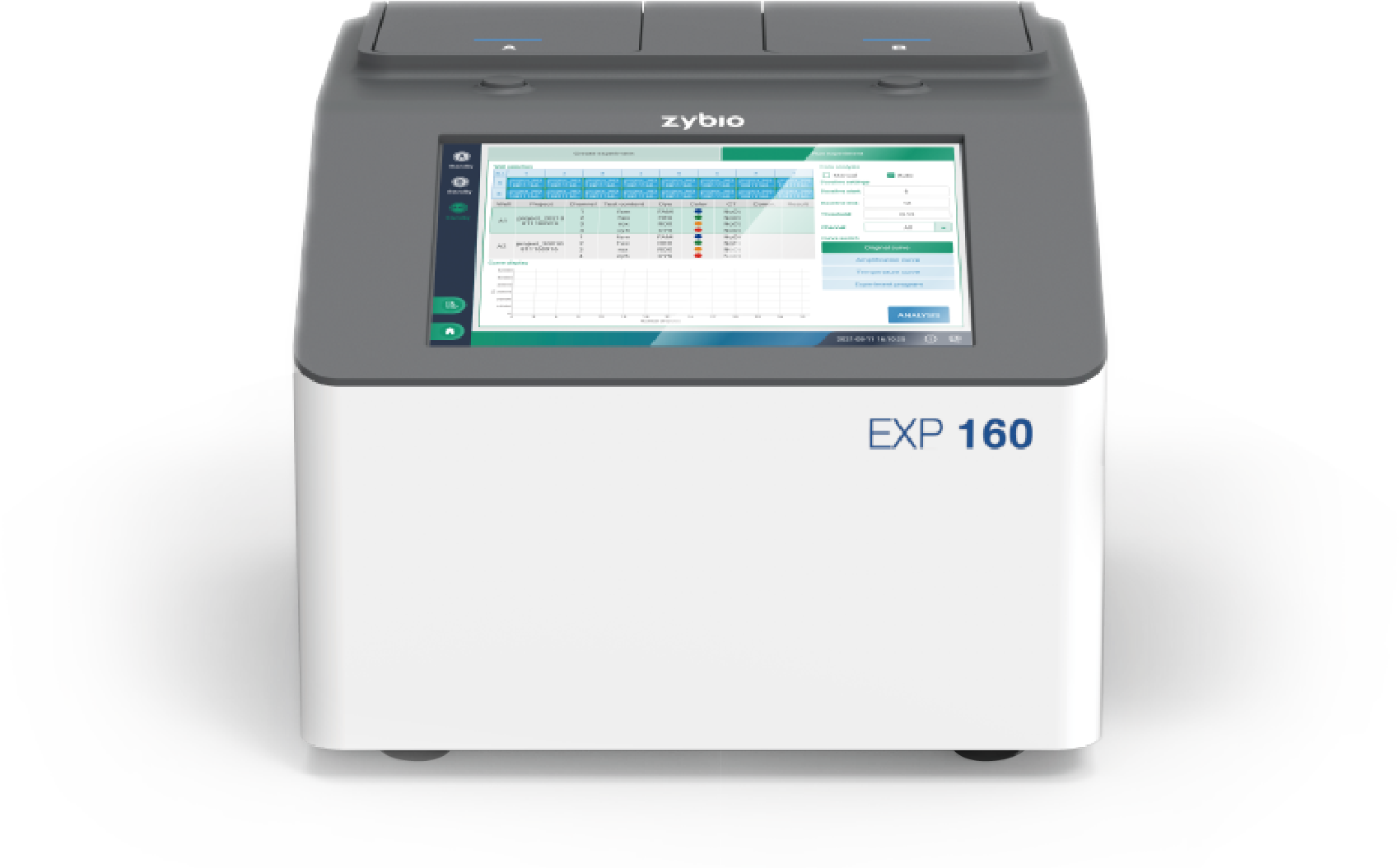

PCR Reader EXP-160
Fast Real-time PCR System EXP160 is an automated amplification
instrument designed for qualitative and quantitative detection of
nucleic acid sequence in human-derived specimens.
EXP160 nucleic acid amplification analyzer belongs to
Zybio new generation qPCR system, which uses in vitro amplification
on the basis of real-time fluorescence polymerase chain reaction
to detect specific targets
TECHNICAL PARAMETERS
|
Throughput 16 tests per run (2 × 8 wells) |
Reaction volume 15-100μL |
Fluorescent channel FAM/SYBR Green I ; VIC/HEX/JOE/TET ; ROX/ |
||
|
Maximum heating rate ≥ 5.8 °C/s |
Maximum cooling rate ≥ 4.5 °C/s |
Temperature accuracy ≤ 0.5° C |
||
|
Temperature precision ≤ 0.3℃ |
Temperature uniformity ±1° C |
Fluorescence linearity r ≥ 0.990 |
||
|
Repeatability of fluorescence CV ≤ 1% |
Dynamic range 1 – 1010 copies |
Sample repeatability CV ≤ 3% |
||
|
Dimensions(W×D×H, mm) 360 * 330 * 260 |
Weight 12.5kg |
Applications Qualitative/ Absolute Quantifification Analysis |
||
* CE Certification
